Grooved-End Bellows Expansion Joint
The Grooved-End Bellows Expansion Joint is a metal bellows compensator designed to absorb primarily axial thermal movement in grooved piping systems while providing a fast mechanical end connection for HVAC, fire-protection and industrial service.
Also searched as a grooved bellows expansion joint, grooved end metal expansion joint, groove-type bellows joint or grooved bellows compensator.
- Connection
- Grooved-End
- Size Range
- DN32–DN350
- Design Pressure
- 0.25–2.5 MPa
- Design Temperature
- -20°C to +400°C
- Primary Movement
- Axial
- Secondary Movement
- Small Lateral / Angular
- Structure
- Corrugated Bellows + Grooved Ends + Limit Rods
- Typical Systems
- HVAC / Fire Protection / Industrial Piping
CustomizationWave number, length and material options can be reviewed according to confirmed project requirements.
Project Configuration
Mingchao can customize the product configuration based on the technical information, operating conditions and dimensional data you provide. Final configuration can be reviewed and manufactured to the approved project drawing.
Grooved-End Bellows Expansion Joint Overview
The Grooved-End Bellows Expansion Joint combines a corrugated metal bellows element with grooved-end pipe connections to provide compact axial thermal-movement compensation in grooved piping systems.
Its primary function is to absorb expansion and contraction along the pipe axis while reducing thermal stress transmitted to connected piping and equipment. Mingchao catalog also identifies limited lateral and angular movement capability, subject to the selected configuration and piping design.
The grooved-end connection is particularly useful where grooved piping is already used for HVAC, fire-protection, building-services or industrial systems and fast mechanical installation is required.
Technical Specifications & Axial Compensation
The confirmed product data below identifies the published design range and primary movement function. Exact axial compensation and dimensional values are confirmed according to the selected size and project conditions.
| Specification | Confirmed Product Data |
|---|---|
| Connection Type | Grooved-End Connection |
| Size Range | DN32–DN350 |
| Design Pressure | 0.25–2.5 MPa |
| Design Temperature | -20°C to +400°C |
| Movement | Axial, with small lateral and angular movement |
| Structure | Corrugated bellows with grooved ends and limit rods |
| Customization | Wave number, length and materials according to confirmed project requirements |
Final axial compensation, length and dimensional configuration are confirmed according to the selected nominal size, pressure level, required movement and approved project drawing.
Grooved-End Connection & Pipe Compatibility
The grooved-end connection allows the expansion joint to be integrated into compatible grooved piping without a flanged connection at the joint itself. Selection must be based on the connected pipe outside diameter, groove configuration, coupling compatibility and required operating pressure.
Before production, confirm the grooved piping system or provide the relevant pipe and coupling dimensions so that the end connection can be matched to the project. Grooved-end dimensions and coupling compatibility are confirmed according to the connected piping system and approved project requirements.
Bellows Construction, Pressure & Temperature
The product uses a corrugated bellows section between grooved-end pipe connections. Limit rods are incorporated in the published Mingchao configuration to help control the permitted movement range. Limit rods are used to control the permitted movement of the expansion-joint assembly; they must not be assumed to replace required piping-system anchors.
The published design-pressure range is 0.25–2.5 MPa and the design-temperature range is -20°C to +400°C. Design pressure and design temperature must be selected together with nominal diameter, movement requirement, medium and piping layout.
Wave number, overall length and material configuration can be reviewed according to confirmed project requirements. Specific material grades are confirmed for the selected configuration.
Applications for HVAC, Fire Protection & Industrial Piping
HVAC & Chilled-Water Piping
Axial thermal-movement compensation in grooved HVAC and chilled-water piping.
Fire-Protection Piping
Grooved-end bellows connection for fire-protection piping where thermal movement must be accommodated according to the project design.
Building Services
Compact movement compensation for mechanical and utility piping in building-services installations.
Industrial Piping
Grooved-end thermal expansion compensation for industrial piping within confirmed pressure and temperature conditions.
Pump & Equipment Connections
Used where a grooved piping system requires controlled movement near connected equipment.
Thermal Expansion Compensation
In-line axial compensation where temperature changes cause pipeline expansion and contraction.
How to Select a Grooved Bellows Expansion Joint
Correct selection requires more than DN alone. The groove and coupling system must match the pipe connection, while bellows geometry must be selected for the required pressure, temperature and movement conditions.
- Nominal diameter / DN
- Pipe outside diameter
- Groove profile / grooved piping system
- Required coupling compatibility
- Design pressure
- Design temperature
- Medium
- Required axial compensation
- Expected lateral / angular movement if any
- Installed / face-to-face length
- Wave number if specified
- Material requirement
- Anchor / guide arrangement
- Quantity
Project drawing or pipe/coupling details
Grooved Bellows vs. Grooved Flexible Metal Hose
| Product Type | Configuration |
|---|---|
| Grooved-End Bellows Expansion Joint | Primary function: axial thermal expansion compensation. Flexible element: corrugated bellows. Connection: grooved ends. Movement character: primarily axial, with limited lateral or angular movement according to configuration. Typical selection: in-line thermal movement in HVAC, fire-protection and industrial piping. |
| Grooved-End Flexible Metal Hose | Primary function: flexible equipment or piping connection and vibration isolation. Flexible element: corrugated hose with external braid. Connection: grooved ends. Movement character: flexible connection with axial, lateral and angular capability. Typical selection: pumps, compressors, equipment and flexible connections. |
Installation, Anchoring & Guiding Considerations
Follow the approved product drawing and piping-system design for final installation.
Connection Compatibility
Verify the pipe OD, groove configuration and coupling compatibility before installation.
Installed Length
Confirm the required installed length and axial movement range.
Piping Alignment
Align the connected piping before final assembly.
Avoid Torsion
Do not twist the metal bellows.
Avoid Forced Correction
Do not use bellows deformation to correct excessive piping misalignment.
Movement Range
Keep movement within the confirmed product range.
Anchors, Guides & Supports
Install piping anchors, guides and supports according to the approved piping design.
Limit Rod Boundary
Do not assume limit rods replace required system anchors.
Protect Bellows
Protect the bellows from impact, welding slag and other mechanical damage.
Pressure Testing
Complete pressure testing only after the required piping supports and movement-control system are in place.

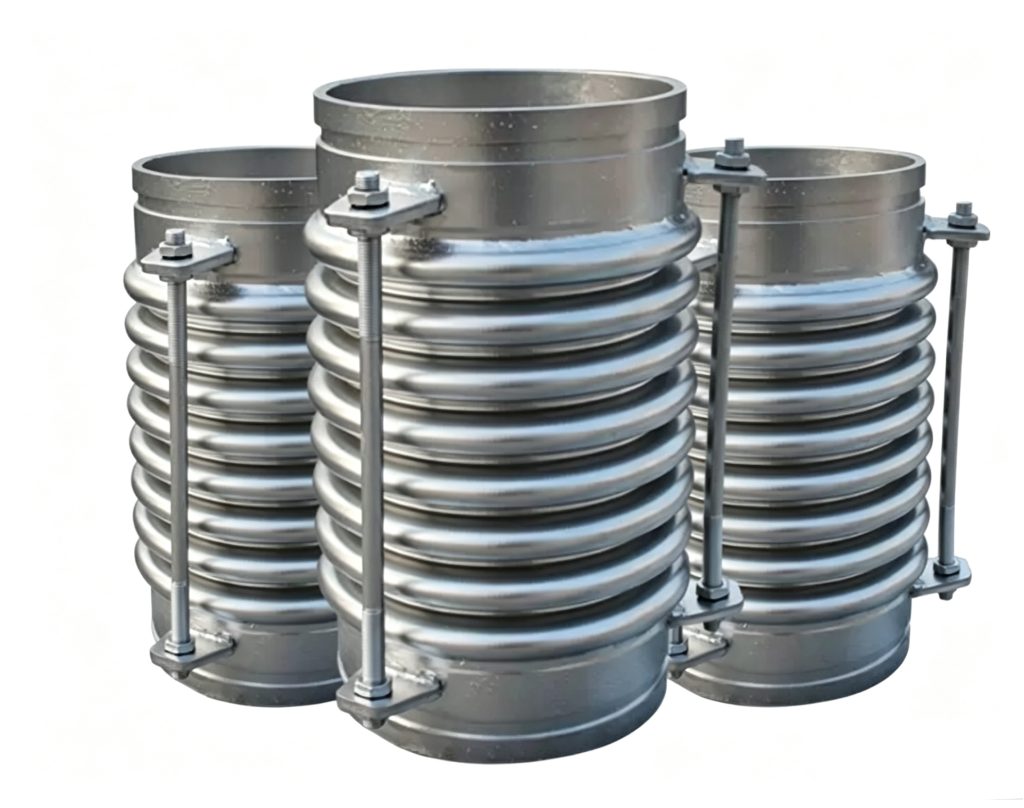

Real Grooved Bellows Product & Technical Photos
Technical Documents / Reference Information
- Grooved Bellows Product Data
- Grooved Connection Technical Drawing
- Product-specific axial compensation and dimensions confirmed after configuration review
- Project-specific connection drawing availability
