Industry Solutions

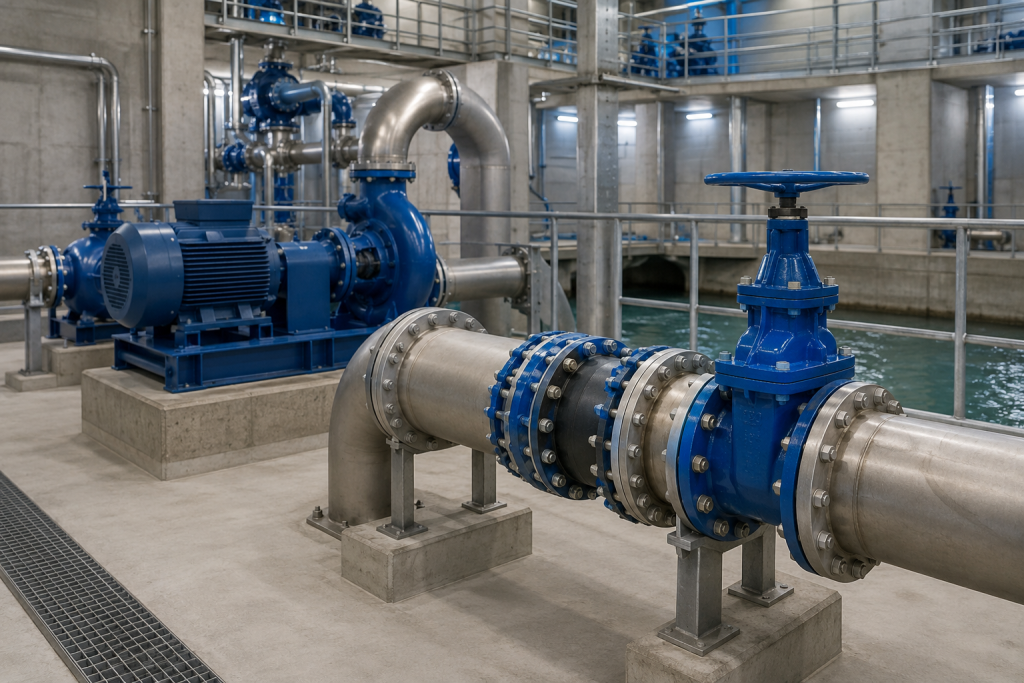

Water & Wastewater

Water and wastewater systems depend on pumps, valves, flow meters and long pipe runs that must remain reliable under vibration, pressure changes, installation tolerances and regular maintenance. Mingchao provides pipeline connection and movement solutions for water treatment plants, wastewater facilities, pump stations and water distribution networks.

The correct connection depends on the equipment location, pipe size, pressure, flange standard, required movement and maintenance requirements. Product selection should therefore be based on the complete piping arrangement rather than pipe diameter alone.

Typical Systems

• Water treatment plants
• Wastewater treatment plants
• Pump stations and booster stations
• Water distribution networks
• Treatment skids and process equipment
• Valve and flow-meter installations

Common Piping Challenges & Recommended Solutions

Pump vibration and equipment connection
Rubber expansion joints provide flexible connections between pumps and rigid piping, helping reduce vibration transmission and accommodate limited designed movement.

Valve and flow-meter installation or removal
Dismantling joints provide controlled axial adjustment and maintenance clearance for valves, pumps, meters and other flanged equipment.

Pipeline adjustment and installation tolerance
Restrained telescopic joints can provide controlled installation adjustment in suitable water and infrastructure piping arrangements.

Wastewater discharge and backflow prevention
Rubber duckbill check valves can provide passive backflow control in suitable wastewater discharge and outfall applications.

Recommended Products

KXT Single Sphere Rubber Expansion Joint
For pump connections, vibration isolation and general water piping.

VSSJAF (C2F) Double Flange Dismantling Joint
For valves, pumps, meters and equipment requiring installation adjustment and maintenance access.

VSSJA-2 (B2F) Double Flange Restrained Telescopic Joint
For controlled telescopic adjustment in suitable waterworks and infrastructure piping.

Rubber Duckbill Check Valve
For suitable wastewater discharge and backflow-prevention applications.

Information Required for Selection

• Pipe size — DN or NPS
• Working or design pressure
• Operating temperature
• Fluid or medium
• Flange standard and pressure class
• Installation or face-to-face length
• Required movement or adjustment
• Pump, valve or meter installation position
• Existing drawings or site photographs

Need a Water & Wastewater Piping Solution?

Send us your piping conditions, flange requirements, installation dimensions and available drawings. Mingchao can review the system and recommend a suitable connection solution for technical quotation.

Related Resources: Rubber Expansion Joints · Pump Suction & Discharge · Multi-Pump Water System Connection

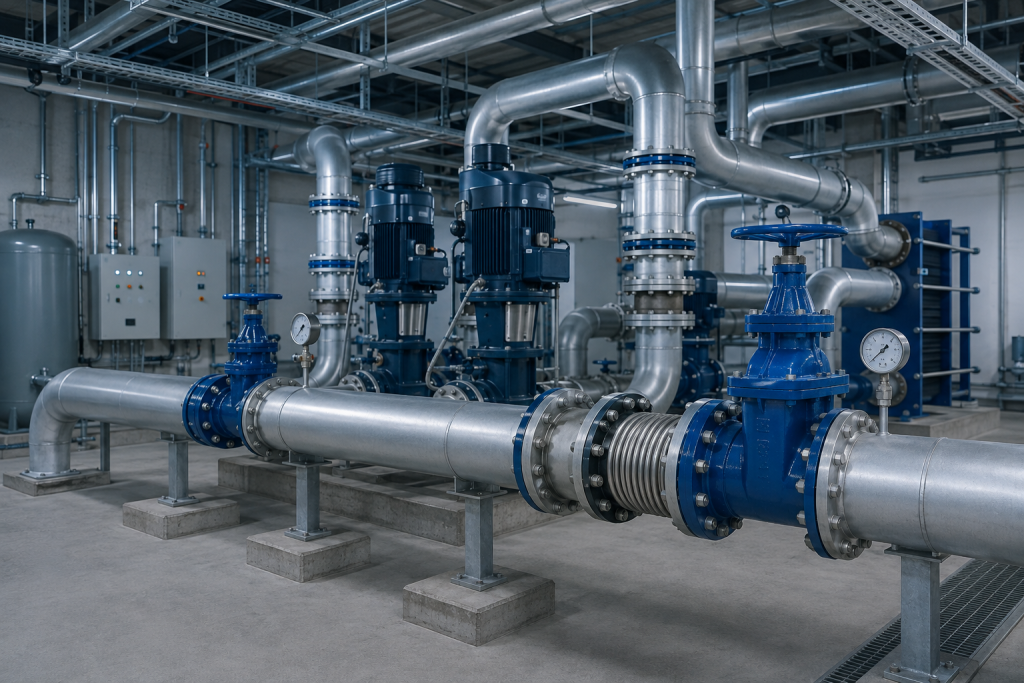

HVAC & District Cooling

HVAC and district cooling systems use pumps, chillers, heat exchangers, valves and long chilled-water pipelines that may be affected by equipment vibration, thermal expansion and maintenance requirements. Mingchao provides expansion joints and flexible piping connections for chilled-water plants, pump rooms and district cooling networks.

Reliable selection requires the pump and equipment arrangement, operating pressure and temperature, expected movement, flange standard, anchors and guides to be considered together.

Typical Systems

• Chilled-water plants
• District cooling networks
• HVAC pump rooms
• Chiller and heat-exchanger connections
• Cooling-water circulation systems
• Building and industrial HVAC piping

Common Piping Challenges & Recommended Solutions

Pump vibration
Rubber expansion joints can provide flexible pump connections and help reduce vibration transmission into connected chilled-water piping.

Thermal expansion and pipeline movement
Metal bellows expansion joints can accommodate defined thermal movement where the piping layout, anchors and guides are designed for the selected expansion-joint configuration.

Valve and equipment maintenance
Dismantling joints can provide installation adjustment and removal clearance around valves, pumps and flanged HVAC equipment.

Flexible equipment connections
Flexible metal hoses can accommodate controlled movement or equipment connection requirements where the hose length, bending arrangement and operating conditions are properly selected.

Recommended Products

KXT Single Sphere Rubber Expansion Joint
For general HVAC pump and chilled-water piping connections.

JDZ Internal Pressure Axial Corrugated Expansion Joint
For suitable piping systems requiring controlled axial thermal-movement compensation.

VSSJAF (C2F) Double Flange Dismantling Joint
For valve, pump and equipment installation and maintenance.

JR Stainless Steel Flexible Metal Hose
For flexible equipment connections subject to confirmed pressure, temperature, medium and movement requirements.

Information Required for Selection

• DN / NPS
• Pressure
• Temperature
• Medium
• Flange or end-connection standard
• Required axial, lateral or angular movement
• Installation length
• Pump or equipment location
• Anchor and guide arrangement where relevant
• Piping drawings

Need an HVAC or District Cooling Connection Solution?

Send us your operating conditions, required movement, connection standard and piping drawings. Mingchao can review the system and recommend suitable expansion or flexible connection products for technical quotation.

Related Resources: Rubber Expansion Joints · Pump Suction & Discharge · Pump Room Expansion Joint Installation

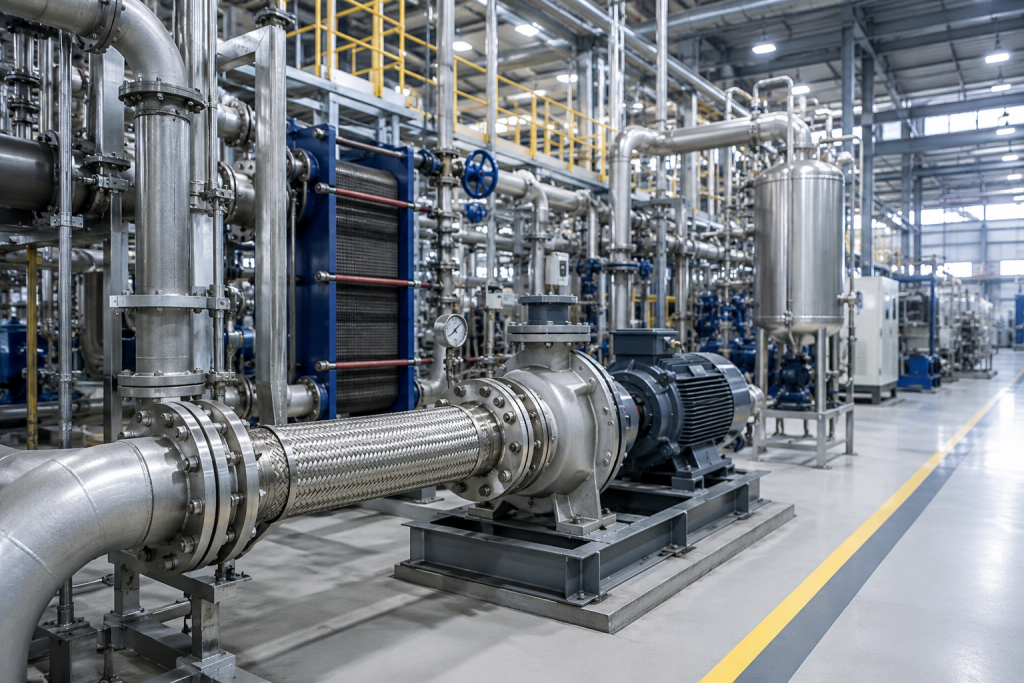

Industrial & Manufacturing

Industrial and manufacturing facilities use process equipment, pumps, utility piping and production systems that may require flexible equipment connections, vibration isolation and thermal-movement compensation. Mingchao provides expansion joints and flexible connection products for general industrial piping and manufacturing systems.

Selection should be based on the actual equipment arrangement, operating medium, pressure, temperature, movement direction and installation geometry.

Typical Systems

• Process equipment and skids
• Industrial utility piping
• Pump and equipment connections
• Cooling and circulation systems
• Heat-exchanger connections
• General manufacturing piping

Common Piping Challenges & Recommended Solutions

Equipment movement and flexible connection
Stainless steel flexible metal hoses can provide controlled flexibility between equipment and rigid piping when hose length, movement direction and bending radius are properly selected.

Thermal movement
Metal bellows expansion joints can accommodate designed pipe movement in systems with suitable anchors, guides and piping arrangements.

Pump and equipment vibration
Rubber expansion joints may be used where vibration isolation and limited movement accommodation are required.

Maintenance and equipment removal
Dismantling joints can provide adjustment and removal clearance for flanged equipment.

Recommended Products

JR Stainless Steel Flexible Metal Hose
For flexible industrial equipment and piping connections.

JDZ Internal Pressure Axial Corrugated Expansion Joint
For suitable axial thermal-movement applications.

KXT Single Sphere Rubber Expansion Joint
For pump and equipment vibration-control applications.

VSSJAF (C2F) Double Flange Dismantling Joint
For flanged equipment installation and maintenance.

Information Required for Selection

• Pipe size
• Pressure
• Temperature
• Medium
• Required movement
• End connection or flange standard
• Installation length
• Available installation space
• Equipment and piping arrangement
• Drawings where available

Need an Industrial Piping Connection Solution?

Send us your equipment arrangement, operating conditions, connection requirements and available drawings. Mingchao can review the application and recommend a suitable flexible or expansion connection for technical quotation.

Related Resources: Expansion Joints & Flexible Connections · Equipment & Skid Connections · Valve & Pump Piping Connection

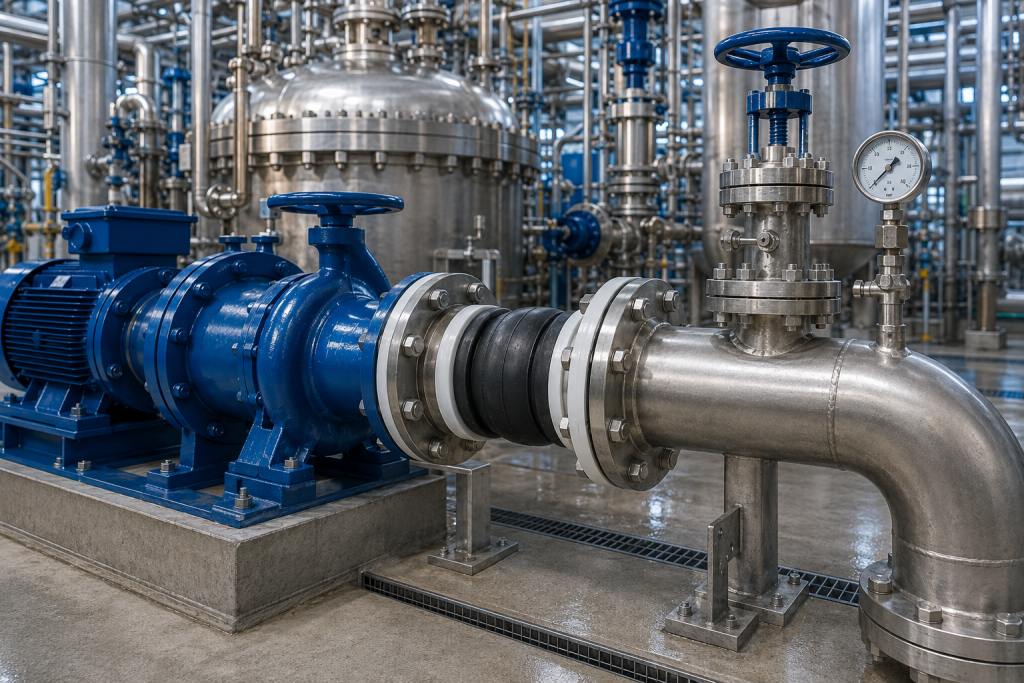

Chemical & Petrochemical

Chemical and petrochemical piping systems may require connection products that accommodate movement or equipment vibration while remaining compatible with the process medium. Mingchao provides PTFE-lined rubber expansion joints, PTFE bellows and other flexible connection options for suitable chemical process and corrosive-media applications.

Material selection must be based on the actual chemical medium, concentration, temperature, pressure and operating conditions. Do not describe any material or product as universally suitable for all corrosive fluids.

Typical Systems

• Chemical process piping
• Chemical transfer pump connections
• Process vessels and equipment
• Heat-exchanger connections
• Corrosive-fluid transfer lines
• Petrochemical process systems

Common Piping Challenges & Recommended Solutions

Corrosive media with pump vibration or limited movement
PTFE-lined rubber expansion joints combine a flexible rubber body with a PTFE-lined wetted interface for suitable corrosive chemical applications, subject to confirmed medium compatibility.

Corrosive process piping with movement requirements
PTFE bellows expansion joints may be considered for suitable chemical-service piping where PTFE compatibility and the required movement have been confirmed.

Thermal movement in process piping
Metal expansion joints may be used where material, temperature, pressure, movement and piping restraint conditions are suitable.

Flexible process-equipment connection
Stainless steel flexible metal hoses may be considered where the hose material and end connections are compatible with the actual process medium and operating conditions.

Recommended Products

PTFE-Lined Rubber Expansion Joint
For suitable corrosive chemical-service piping where flexibility, vibration isolation or designed movement is required.

PTFE Bellows Expansion Joint
For suitable chemical and corrosive-media piping requiring PTFE movement compensation.

JDZ Internal Pressure Axial Corrugated Expansion Joint
For suitable process piping requiring axial thermal-movement compensation after material and operating-condition review.

JR Stainless Steel Flexible Metal Hose
For suitable flexible equipment connections after confirming material compatibility, pressure, temperature and movement.

Information Required for Selection

• Chemical medium
• Concentration where relevant
• Pipe size — DN / NPS
• Working and design pressure
• Operating and design temperature
• Required movement
• Flange or end-connection standard
• Installation length
• Equipment or pump connection position
• Material requirements
• Process drawings where available

Need a Chemical Process Piping Solution?

Send us the medium, concentration where relevant, pressure, temperature, pipe size, connection standard, movement requirements and available drawings. Mingchao can review the application and recommend a suitable corrosion-resistant connection configuration for technical quotation.

Related Resources: PTFE Expansion Joints · Materials & Media Compatibility · Available Standards
